Model HE/3000

Single Polishing Filter



The Hydrokleen HE/3000 is designed to filter water for discharge to sewer or for recycling back to wash applications.  This system requires no in ground water storage for operation.  Filtration capacity of 12 GPM continuous is achieved with the HE/3000.



Features:

  • Overflow Protection

  • Self-Cleaning Tanks

  • Gravity Flow Through Design

  • Primary Solids Incline Tank

  • 230/115 Volt, 1 Phase, 60 HZ or 220 Volt, 1 Phase, 50 HZ

  • Polishing Loop For Fine Solids Or Hydrocarbon Removal

  • PLC Controls Start Up, Daily Operation And Maintenance Functions

  • Optional Remote Operation Monitoring

  • Optional Biological Odor Control and Hydrocarbon Elimination

  • Optional Ozone Bacteria Control

  • Optional De-Foam Control

  • Optional Full System Vented Enclosures



    Dimension:  72” L X 36 ” W X 75” H     Weight: 1,006 LBS.



    What will a HE/3000 do for you?

    The HE/3000 is a filtration system that incorporates a filtration media selected for your filtration or recycling requirements.  Solids, oils & grease (hydrocarbons) or metals filtration, you can choose any one (1) and the media will be selected based on your choice of filtration requirements.  Every HydrokleenTM filtration systems can also incorporate pH control, bacteria, pathogen and odor elimination, along with remote system monitoring.  It’s like having an onsite maintenance person at your facility!

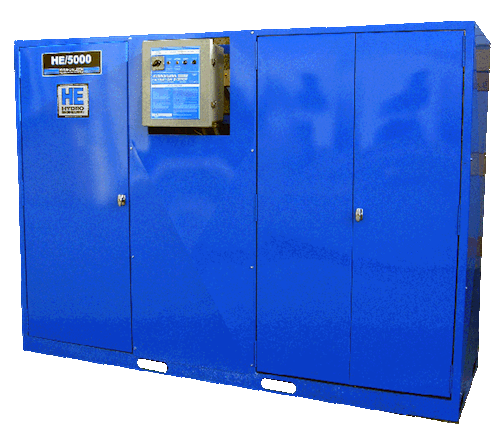

Model HE/5000

Single Polishing Filter with Oil Coalescing



The Hydrokleen HE/5000 is designed to filter water for discharge to sewer or for recycling back to wash applications. This system requires no in ground water storage for operation. Filtration capacity of 12 GPM continuous is achieved with the HE/5000.

    • Overflow Protection

    • Self-Cleaning Tanks

    • Gravity Flow Through Design

    • Primary Solids Incline Tank

    • 52,372 IN2 of Oil Coalescing Plates

    • Oil Belt Skimmer with Oil/Water Decanter

    • Polishing Loop for Fine Solids or Hydrocarbon Removal

    • Remote Operation Monitoring

    • Biological Odor Control and Hydrocarbon Elimination

    • Ozone Bacteria Control

    • De-Foam Control

    • Full System Vented Enclosures



           Dimension: 103"L X 36"W X 75"H Weight: 1,380 LBS.

            What will a HE/5000 do for you?

Features:

The HE/5000 incorporates two (2) separate filtration modules. First an oil water separation then a filtration module that incorporates a filtration media that is selected for your filtration or recycling requirements. Solids, oils & grease (hydrocarbons) or metals filtration, you can choose any one (1) and the media will be selected based on your choice of filtration requirements. Every Hydrokleen filtration systems can also incorporate pH control, bacteria, pathogen and odor elimination, along with remote system monitoring. It’s like having an onsite maintenance person at your facility!

Model Bioreactor Hydrokleen



The Hydrokleen Bioreactor eliminates odors from waste water and converts organic matter including soaps, waxes, oils, greases into harmless water and carbon dioxide. Enjoy pathogen free water!



Features:

    • Gravity flow through design

    • Self-cleaning tanks

    • Overflow protection device

    • Biological oxygenation system keeps bacteria aerobic 24 hours per day

    • Removes wax, soaps and organic chemicals

    • Consumes hydrocarbons (oils, grease, fat)

Dimension:

Bioreactor with 210 tank option, 33" x 47" x 88"H Weight 550 lbs.

Bioreactor with 500 tank option, 51" x 52" W x 88"H Weight 696 lbs.

How the Hydrokleentm Bioreactor Works:

Bioreactors are the basic filtration method used by industrial and governmental sewer plants. Any industry producing waste water can benefit immensely from the proper use of the BIOREACTOR. Converting organic matter including oils and greases to harmless water and carbon dioxide and providing pathogen free water are just a few of the benefits. Contained within the reactor is a specific biomass media. The biomass creates a home for trillions of bacteria where contaminants such as organic chemicals, soaps, wax and hydrocarbons are collected for digestion by the bacteria. See the information on Hydro-Biodigesters bacterial products.

Equipment/Vehicle Wash Rack Systems



 - No Architectural Design

 - No Permitting

 - No Construction

 - No Delays

 - Wash / Collect / Recycle..recycle 100% of all water captured

Your wash rack can be operational immediately. If you move, your wash rack can move too. Hydro Engineering Inc's wash racks are equipment, not construction projects.

BEFORE AND AFTER WASH WATER TREATMENT
